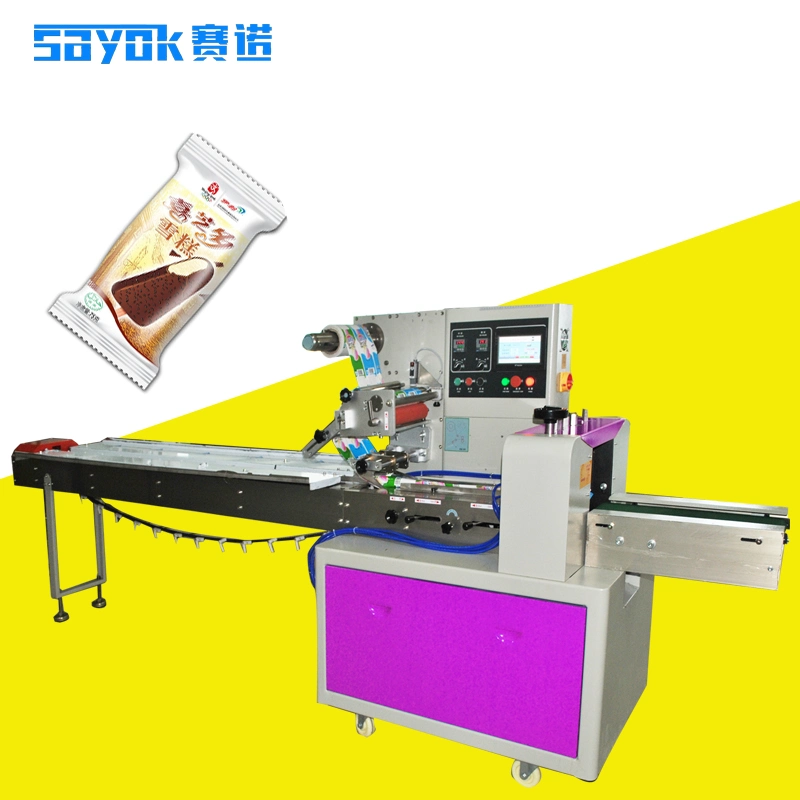

Automatic feeding Pillow Shaped Bag Packaging Machine for Popsicle lolly pop ice cream stick wrapping machine
Automatic feeding Pillow Shaped Bag Packaging Machine for Popsicle lolly pop ice cream stick wrapping machine
Main performance and structure features:
1.Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films
2.human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
2.human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4.High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.
5.Separate PID control to temperature, suitable for various packing materials.
6.Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7.Simple driving system, reliable working, convenient maintenance.
8.All the controls are achieved by software, convenient for function adjusting and upgrading.
Model | SN-250E/S | SN-250B/D | SN-320B/D | SN-350B/D |
Film width | Max.180mm | Max.250mm | Max.320mm | Max.350mm |
Bag length | 50-115mm or 45-90mm | 65-190mm/90-280mm 90-220mm/120-330mm | 65-190mm/90-280mm 90-220mm/120-330mm | 65-190mm /90-280mm 90-220mm/120-330mm |
Bag width | 30-80mm | 30-110mm | 50-160mm | 50-160mm |
Product's height | Max.35mm | Max.45mm | Max.55mm | Max.60mm |
Packing speed | 60-330bags/min | 40-230bags/min | 40-230bags/min | 40-180bags/min |
Power | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.4KW | 220V 50/60HZ 2.6KW | 220V 50/60HZ 2.6KW |
Machine dimension | 3770x670x1450 | 3770x670x1450 | 3770x720x1450 | 4020x770x1450 |
Machine weight | 500kg | 500kg | 550kg | 580kg |
Model | SN-400 | SN-450 | SN-600 | SN-700 |
Film width | Max.400mm | Max.450mm | Max.600mm | Max.700mm |
Bag length | 120-400mm | 120-500mm | 120-500mm | 120-500mm |
Bag width | 50-180mm | 50-180mm | 100-280mm | 100-330mm |
Product's height | Max.70mm | Max.80mm | Max.80mm | Max.80mm |
Packing speed | 30-150bags/min | 30-150bags/min | 20-150bags/min | 20-150bags/min |
Power | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW | 220V 50/60HZ 2.8KW |
Machine dimension | 4020x800x1450 | 4020x820x1450 | 4020x920x1460 | 4020x980x1480 |
Machine weight | 600kg | 650kg | 680kg | 720kg |
Q1 : Which one packing machine is suitable for us ?
Dear, before quoting, please kindly consult us and providing: 1.your product name,product picture. 2.your bag size,such as bag width and bag height. 3.ideal bag shape. For there is over 100 kinds of packing machine,different on bag size. In order to recommend u the best,we need know that information. If u just start this business,no bag size,we can help u to find similar weight bag for your reference.
Q2: Is that packing machine ok for our product?How to operate it?
If you donnot mind,you can send u sample.we will use existing packing machine to test for u. During that time,we will take video and clearer picture for you.If chance,we can take video online and show u.
Q3: Is that pack many bag size in the same packing machine?
That is the common question from our customer.Every packing machine has its range for bag length and bag width.Can you send us full details,i will calculate for u and give u exact reply.
Q4:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction.
Q5: Can you explain me the whole transaction process ?
1.Both sides reached cooperation intention 2.Signed the Contract 3.Arrange the 30% deposit to factory 4.Factory arrange production 5.Testing&detecting the machine before shipping 6.Arrange the balance payment 7.Confirm the shipping details then delivery 8.When the machine arrives, follow the instructions
Q6: How do we contact you?
There is a contact information on the right of this page. Please leave message and click "send". you also can contact us through Email, wechat, skype, whatsapp, QQ, Facebook, phone and etc.
Foshan Sayok Packaging Machinery Co.,Ltd., located in Foshan, Guangdong, is dedicated to developing and producing various packaging machinery. With advanced R & D concept, professional technology, mature processing system, rigorous QC management system and considerate after-sales service, we have won a good reputation in the industry. With rich industry knowledge and service experience, we can offer our clients one-stop packaging solutions. We welcome you to visit our factory, and talk about business face to face with us. We firmly believe that our rise in the industry can't be achieved without your support. We aim to produce more advanced products and co-advance with our clients.
Since we set up the company, we have developed dozens of packaging machines and corollary equipments in several series. From double frequency conversion packaging machine series to advanced three servo packaging machine, and then full-automatic packaging production line. After continuous improving and perfecting, our production techniques have reached industry standard, and thus helped us to win many distributors.
Main products:
We produce pillow type packaging machine, vertical packaging machine, automatic feeding packaging line and corollary equipments, which can be used for packaging of food, vegetable, hardware and daily necessities, etc.
